Applications

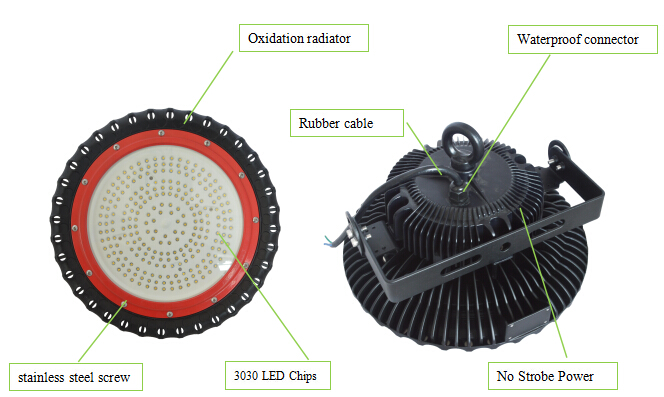

1.Using high-power SMD 3030 lamp beads, high cost, with high thermal conductivity, low luminous decay, pure light color, no ghosting
2, the unique design of the heat sink, through the heat pipe of the radiator center, the heat fast conduction diffusion, so as to reduce the degree of the lamp body, and effectively ensure the life of the light source and power supply;
3, the heat sink surface anodic oxidation processing, junction box built mine, waterproof tape, good waterproof connectors, waterproof, dustproof performance, heightening light reflector lens Professional
Secondary light distribution, beam angle available;
4, green pollution-free, lead, mercury and other pollution elements, no environmental pollution;
5, the color is good, the physical color presentation of more vivid. Variety of light colors available, to meet the needs of different environments, so that the visual comfort;
6, using constant current control for wide voltage to overcome the power grid due to ballast, noise pollution and instability caused by lighting, avoid eye caused shock;
7, simple installation, easy removal for a wide range.
|
Input Voltage
|
AC100-277V
|
Frequency Range
|
50Hz ～ 60Hz
|
|
Total Harmonic Distortion
|
≤12%
|
Power Factor
|
﹥0.95
|
|
Power Efficiency
|
﹥90%
|
LED Working Voltage
|
DC36-48V
|
|
System Consumption
|
180±5 W
|
LED
|
252PCS/3030
|
|
Led Luminous Efficiency
|
130LM/W
|
Led Initial Flux
|
18000-23400 lm
|
|
|
﹥0.5
|
Lamp's Efficiency
|
﹥90%
|
|
Color Temperature
|
WW
|
3000K ±10%
|
Color Rendering Index
|
Ra﹥70
|
|
PW
|
4200K ±10%
|
Light Distribution
|
Symmetrical / Round Spot
|
|
CW
|
6200K ±10%
|
Light Design
|
LED+Reflector secondary light distribution
|
|
LJunction Temperature
|
≦45℃
|
IP Grade
|
IP65
|
|
Working Life-span
|
50000H
|
Power line
|
1.0mm²
|
|
Connect wire
|
Brown
|
L
|
NW
|
6.0kg
|
|
Blue
|
N
|
GW
|
6.5kg
|
|
Yellow/Green
|
G
|
Package Size
|
360*360*200mm
|
|
Ambient temperature
|
-45℃～+60℃
|
Working temperature
|
-40℃～+50℃
|
|
