new LED High pole lights Details
|
Applications
Construction sites,Building lighting, Hotel, Wharf, Workshop, Gas station, Football field, Golf Course, Landscape lighting, etc.
------------------------------------------------------------------------------------------------------------------------------------------
Features
|
1, using the built-in 22 ° beam angle reflectors converging technologies, more compact and more secure. COB light source, with high thermal conductivity, low luminous decay, pure light color, no ghosting, etc;
2, the unique heat sink design, heat conduction through the center of the radiator tubes, fast heat conduction diffusion, thereby reducing the degree of the lamp body, effectively ensuring that the light source and power of life;
3, the heat sink surface anodic oxidation processing, junction box built mine, waterproof tape, good waterproof connectors, waterproof, dustproof performance, heightening light reflector lens Professional
Secondary light distribution, beam angle available;
4, green pollution-free, lead, mercury and other pollution elements, no environmental pollution;
5, the color is good, the physical color presentation of more vivid. Variety of light colors available, to meet the needs of different environments, so that the visual comfort;
6, using constant current control for wide voltage to overcome the power grid due to ballast, noise pollution and instability caused by lighting, avoid eye caused shock;
7, simple installation, easy removal for a wide range.
----------------------------------------------------------------------------------------------------------------------------------------------
|
|
|
Input Voltage
|
AC100-277V
|
Frequency Range
|
50Hz ～ 60Hz
|
|
Total Harmonic Distortion
|
≤12%
|
Power Factor
|
﹥0.95
|
|
Power Efficiency
|
﹥90%
|
LED Working Voltage
|
DC36-39V
|
|
System Consumption
|
400±5 W
|
LED
|
4 PCS
|
|
Led Luminous Efficiency
|
100LM/W
|
Led Initial Flux
|
36000 lm
|
|
|
﹥0.5
|
Lamp's Efficiency
|
﹥90%
|
|
Color Temperature
|
WW
|
3000K ±10%
|
Color Rendering Index
|
Ra﹥70
|
|
PW
|
4200K ±10%
|

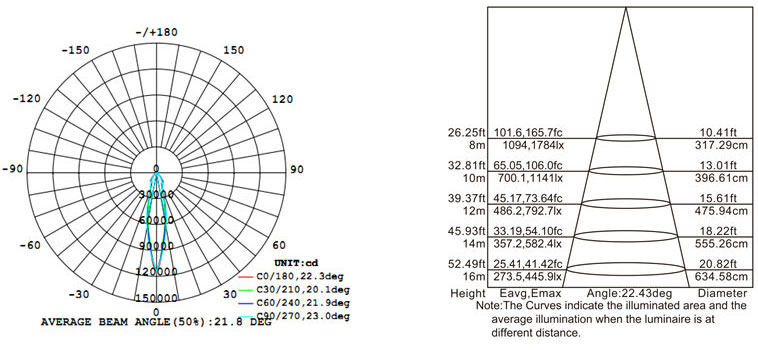

Light Distribution
|
Symmetrical / Round Spot
|
|
CW
|
6200K ±10%
|
Light Design
|
LED+Reflector secondary light distribution
|
|
LJunction Temperature
|
≦45℃
|
IP Grade
|
IP65
|
|
Working Life-span
|
50000H
|
Power line
|
1.5mm²
|
|
Connect wire
|
Brown
|
L
|
NW
|
17.2kg
|
|
Blue
|
N
|
GW
|
18.2kg
|
|
Yellow/Green
|
G
|
Package Size
|
480*460*250mm
|
|
Ambient temperature
|
-45℃～+60℃
|
Working temperature
|
-40℃～+50℃
|
|
|
|
|
------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------
|
|
