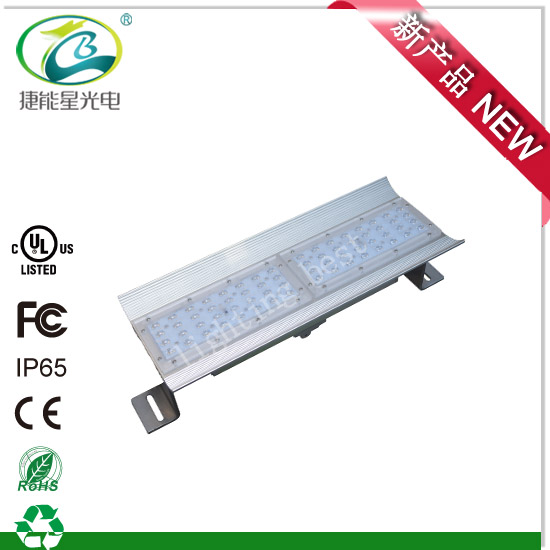

LM150 series LED linear high bay light Details
POWER:60-180W
|
Main Technical Parameters
|
|
Input Voltage
|
AC110V ～ 265V
|
Frequency Range
|
50Hz ～ 60Hz
|
|
Total Harmonic Distortion
|
≤12%
|
Power Factor
|
﹥0.96
|
|
Power Efficiency
|
﹥90%
|
Working Voltage
|
DC24 ～ 36V
|
|
System Consumption
|
60±5%
|
LED
|
48 PCS
|
|
Led Luminous Efficiency
|
100LM/W
|
Led Initial Flux
|
5100 lm
|
|
Illumination Uniformity
|
﹥0.5
|
Lamp's Efficiency
|
﹥85%
|
|
Color Temperature
|
WW
|
3000K ±10%
|
Color Rendering Index
|
Ra﹥70
|
|
PW
|
4200K ±10%
|
Light Distribution
|
Circular to spo
|
|
CW
|
6200K ±10%
|
Light Design
|
LED+chips
|
|
Junction Temperature
|
≦30℃
|
IP Grade
|
IP65
|
|
Working Life-span
|
50000H
|
Power line
|
1.0mm2
|
|
Connect wire
|
Brown
|
L
|
NW
|
5.0kg
|
|
Blue
|
N
|
GW
|
5.4kg
|
|
Yellow/Green
|
G
|
size
|
190*180*630
|
|
temperature
|
-45℃～+60℃
|
Outer packing size
|
N/A
|
|
